Cummins INSITE Diagnostic Laptop Kit
The Cummins INSITE Laptop Diagnostic Kit is a complete, ready-to-use diagnostic solution for technicians, fleets, and repair facilities servicing supported Cummins electronic engines.
Every EngineDiag laptop kit is professionally configured before shipment. Cummins INSITE is fully installed and activated, the selected diagnostic adapter is set up, and the system is tested so it arrives plug-and-play and ready to use. There is no need for the customer to install or activate the diagnostic software before getting started.
Plug-and-Play Ready
- Cummins INSITE software pre-installed
- 12-month INSITE license activated before shipment
- Selected diagnostic adapter configured and ready for use
- Required communication drivers installed
- System setup completed and tested before shipment
- Ready to connect to supported Cummins engines upon arrival
Choose Your Laptop
Select the Panasonic FZ-55 configuration that best fits your needs:
- New Panasonic FZ-55: Includes a 2-year laptop warranty
- Refurbished Panasonic FZ-55: Includes a 1-year laptop warranty
Choose Your Cummins INSITE License
Cummins INSITE provides PC-based access to electronic engine information and supported diagnostic and service functions. Both license options include fault information, fault-code and symptom-based diagnostics, engine diagnostic tests, trip and vehicle information, parameter and feature adjustments, templates, audit-trail information, work orders, and built-in help.
- INSITE Lite: Designed for diagnostics, troubleshooting, engine tests, and supported parameter adjustments.
- INSITE Pro: Includes the capabilities of INSITE Lite plus calibration management for supported ECM calibration operations.
Choose Your Diagnostic Adapter

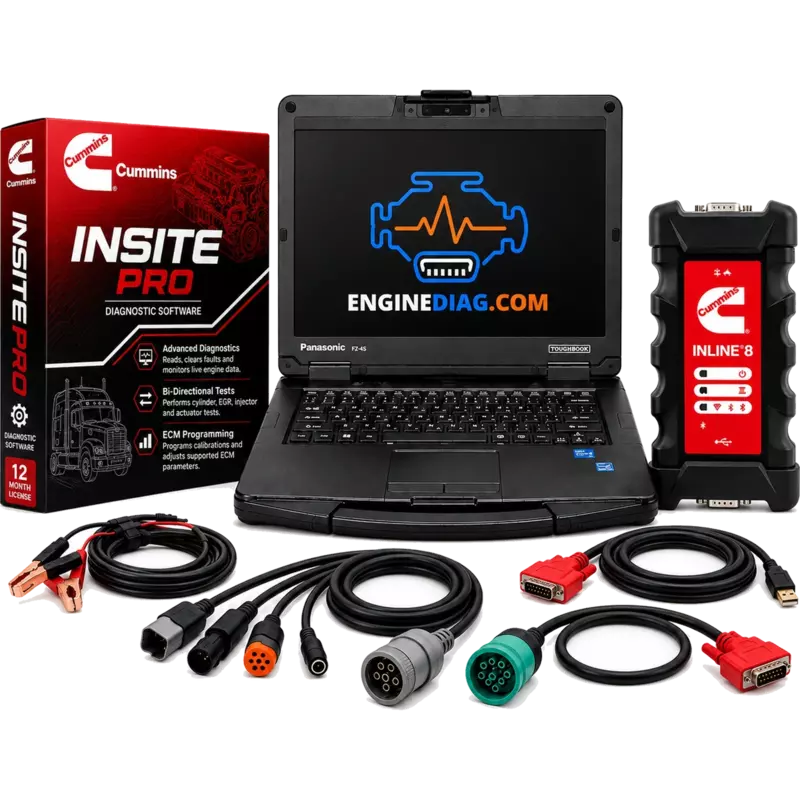

- Cummins INLINE 8: Cummins OEM datalink adapter with USB, Bluetooth, and Wi-Fi connectivity. The included 6576526 kit features the heavy-duty 9-pin vehicle cable.
- Cummins USB-Link 3: Wireless multi-brand diagnostic adapter with USB, Bluetooth, and Wi-Fi connectivity and a heavy-duty cable set.

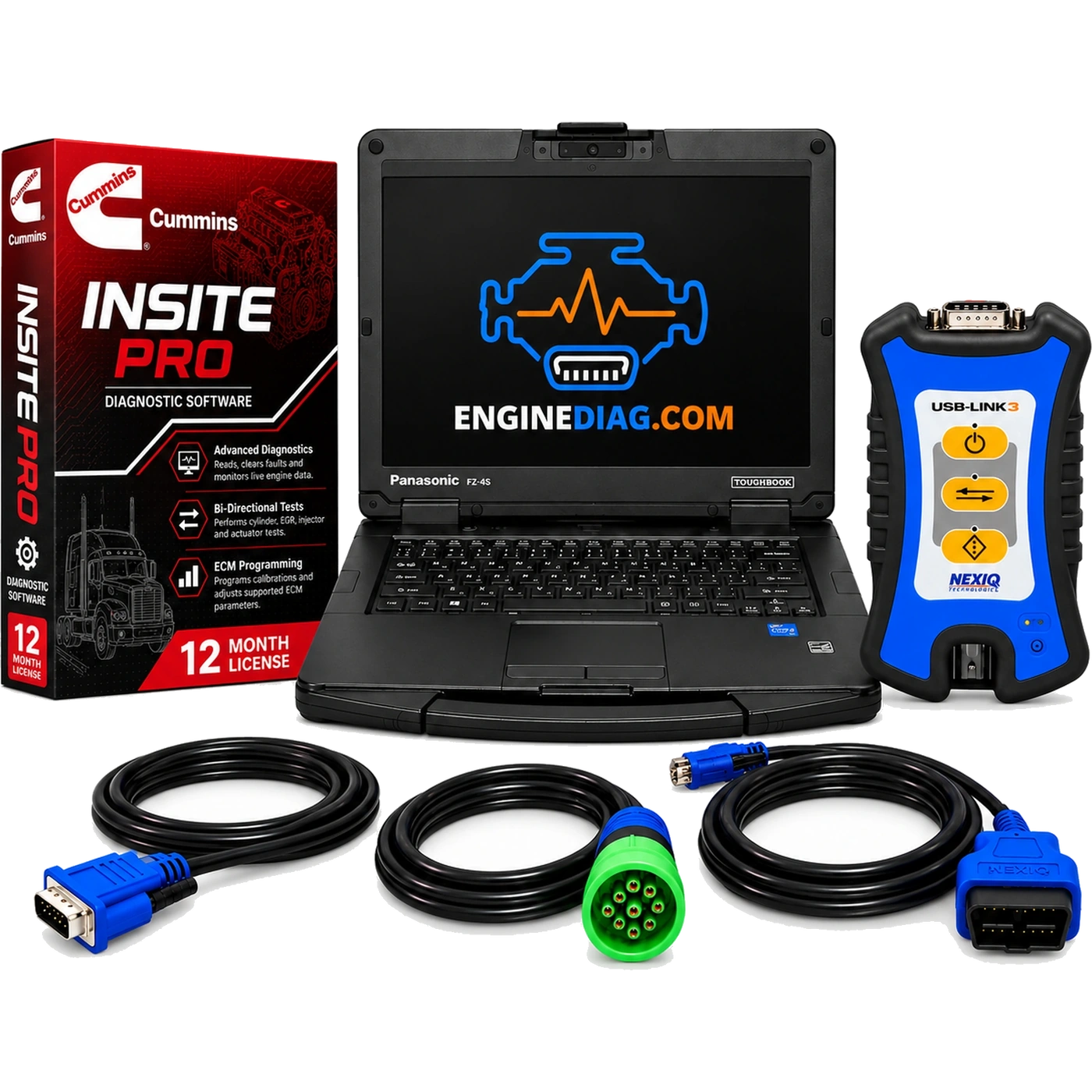

- NEXIQ USB-Link 3 Wireless: Multi-brand commercial vehicle interface with USB, Bluetooth, and Wi-Fi connectivity plus support for current protocols including CAN FD and DoIP.
Key Capabilities
- Read and clear supported Cummins engine fault information
- Fault-code and symptom-based diagnostics
- View trip and vehicle information
- Monitor supported engine information and operating data
- Adjust supported features and parameters
- Perform supported engine diagnostic tests
- Create and use vehicle programming templates
- Maintain work orders and audit-trail information
- Access built-in diagnostic and troubleshooting assistance
- Calibration management with INSITE Pro
What's Included
Each configuration includes the selected Panasonic FZ-55 laptop, AC power adapter, pre-installed and activated 12-month Cummins INSITE license, selected diagnostic adapter, applicable vehicle and USB cables, complete software installation and configuration, and plug-and-play setup.
The exact VCI cables and accessories included depend on the diagnostic adapter selected.
Warranty
- New Panasonic FZ-55: 2-year laptop warranty
- Refurbished Panasonic FZ-55: 1-year laptop warranty
- Diagnostic Adapter / VCI: 1-year manufacturer warranty
Product Configuration Options
Laptop: New Panasonic FZ-55 or Refurbished Panasonic FZ-55
Software: Cummins INSITE Lite or Cummins INSITE Pro
Diagnostic Adapter: Cummins INLINE 8, Cummins USB-Link 3, or NEXIQ USB-Link 3 Wireless
Software License Term: 12 Months
Delivery: Complete configured laptop diagnostic system
Important: Available diagnostic, parameter, testing, calibration, and programming functions depend on the selected INSITE license, engine or ECM being serviced, applicable Cummins authorization, and vehicle configuration. INSITE Pro is required for supported calibration management functions.
