DrewLinQ Standard Kit
The DrewLinQ Standard Kit is a professional vehicle diagnostic adapter designed for heavy-duty trucks, commercial vehicles, medium-duty platforms, and other supported equipment. It connects vehicle communication networks to compatible Windows-based diagnostic and reprogramming software.
DrewLinQ supports both TMC RP1210 and SAE J2534 application standards, allowing one interface to work with a wide range of OEM and aftermarket diagnostic applications. Depending on the software being used, technicians can read diagnostic information, monitor live parameters, perform component-level testing, and carry out supported ECM reprogramming procedures.
The Standard Kit is configured for broad heavy-duty RP1210 support and includes the 6-pin / 9-pin Deutsch Y-cable as well as the Volvo 2013+ cable kit and additional connection hardware.
Key Capabilities
- RP1210 diagnostic application support
- J2534 pass-thru support
- Heavy-duty and commercial vehicle diagnostics
- Live parameter monitoring
- Supported component-level testing
- Supported ECM programming and reprogramming
- Multi-brand OEM diagnostic software compatibility
Technical Specifications
Manufacturer: OPUS | IVS
Manufacturer Part Number: DL-LD-HD-KIT
VCI Compatibility: Universal
Connection Type: USB
Supported Protocols: 4 Concurrent CAN Channels: 3 High-Speed Dual-Wire CAN, 1 Single-Wire/Fault-Tolerant CAN (supports J1939 and ISO 15765), J1708 / J1587, All OBD-II Protocols (ISO 9141, KWP2000, VPW, PWM, CAN), API Standards: TMC RP1210 (A/B/C) and SAE J2534, Legacy Protocols: GM UART, ALDL, and Allison CEC
Compatible Software / OEMs: Cummins: INSITE, Detroit Diesel: Diagnostic Link (DDDL), CAT: Electronic Technician (ET), Navistar / International: Diamond Logic Builder, NavKal, ServiceMaxx, PACCAR: DAVIE4, Allison: Allison DOC, Bendix: ACom, Meritor WABCO: TOOLBOX, Eaton: ServiceRanger, Hino: Diagnostic Explorer (DX2), Multi-Brand / General Diagnostics: Noregon JPRO, PocketFleet PF-Diagnose
Warranty: 1 Year Manufacturer Warranty

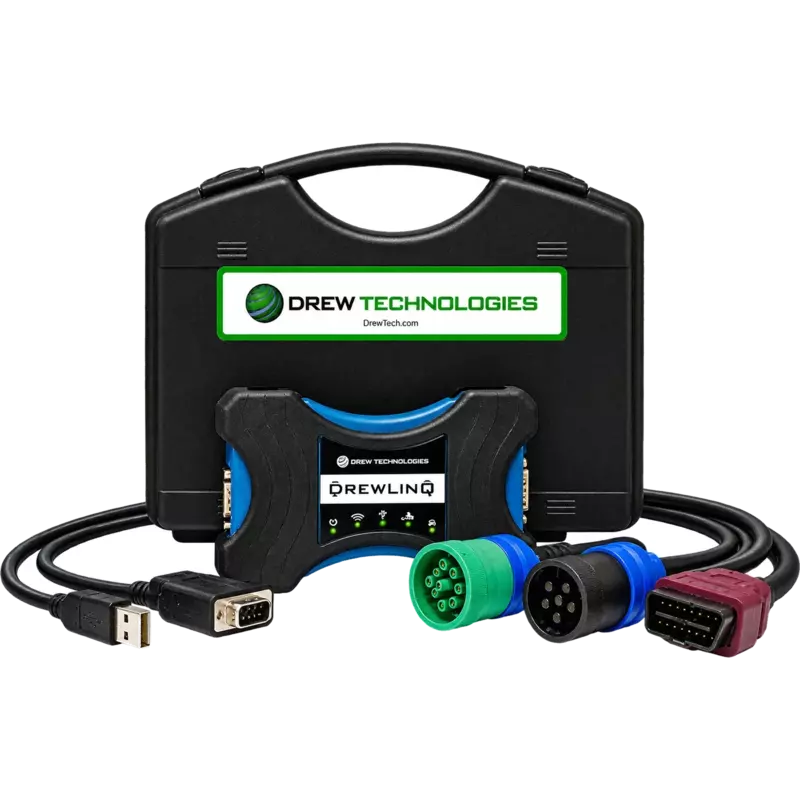

What's Included
- DrewLinQ Interface Unit
- 6-Pin & 9-Pin Deutsch Y-Cable
- Volvo / Mack OBD-II Cable (2013+ spec)
- Crossover / Ethernet Cable
- USB Cable (PC-to-Device connection)
- QuickStart Guide & Installation Media
Important: Diagnostic, programming, and service capabilities depend on the software application, vehicle or control module being serviced, and applicable software subscriptions or authorization. Software subscriptions are sold separately unless specifically stated otherwise.
