Ford VCM3
The Ford VCM3 is Ford’s current-generation OEM Vehicle Communication Module designed to connect Ford diagnostic software with supported Ford and Lincoln vehicle electronic systems.
VCM3 is required for use with Ford IDS and is Ford’s recommended vehicle communication interface for FDRS and FJDS. When paired with the appropriate Ford diagnostic software and subscription, it provides dealership-level communication for diagnostics, service procedures, programmable parameters, module installation, and supported module reprogramming.
Compared with earlier Ford VCM hardware, the VCM3 adds support for J1708 and J1939 vehicle networks, expanding its capability for supported Ford medium-duty truck diagnostics. It is also designed to support newer CAN-FD networks and increased module-reprogramming speeds on applicable vehicles.
Key Capabilities
- Required vehicle communication interface for Ford IDS
- Recommended VCI for Ford FDRS and FJDS
- Supports dealership-level Ford and Lincoln diagnostics
- Supports programmable parameters and applicable service procedures
- Supports module programming and reprogramming on applicable vehicles
- CAN-FD support for newer vehicle architectures
- J1939 and J1708 support for applicable medium-duty truck diagnostics
Technical Specifications
Manufacturer: Bosch
Manufacturer Part Number: 164-R9865
VCI Compatibility: OEM
Connection Type: USB / Bluetooth / Wi-Fi / Wireless
Supported Protocols: CAN & CAN-FD (Controller Area Network Flexible Data-Rate), DoIP (Diagnostics over Internet Protocol), ISO 9141, J1850 (PWM), SAE J1708 & SAE J1939, RP1210
Compatible Software / OEMs: FDRS (Ford Diagnostic and Repair System) – For newer vehicles (2018–present), IDS (Integrated Diagnostic Software) – For legacy/pre-2018 vehicles, FJDS (Ford J2534 Diagnostic Software)
Warranty: 1 Year Manufacturer Warranty

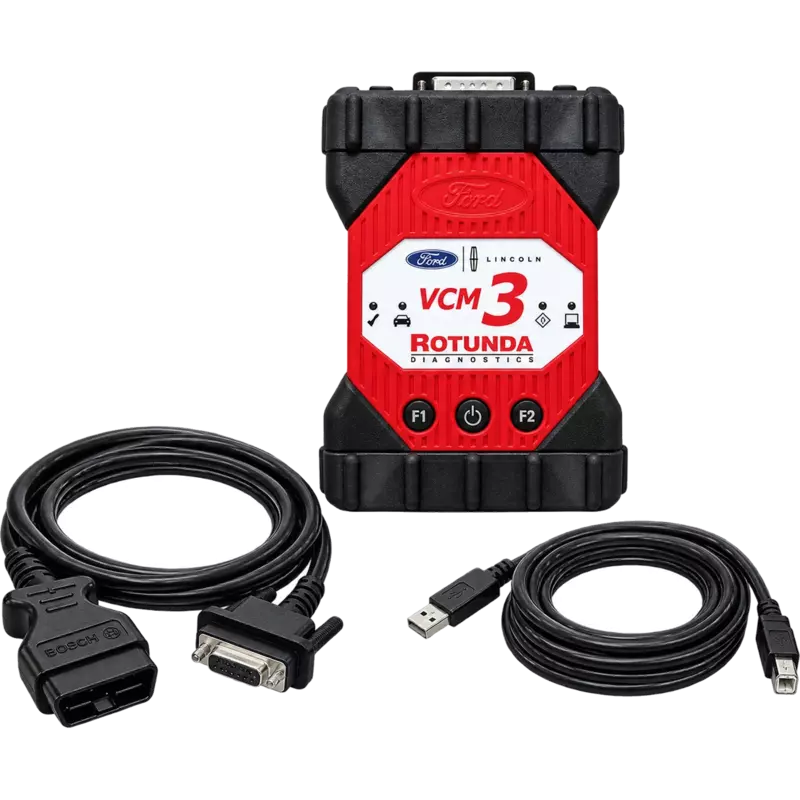

What's Included
- Ford VCM3 Interface Main Unit
- 16-pin DLC (OBD-II) Cable
- Heavy-duty Latching USB Cable
- Integrated Wireless/Wi-Fi Adapter
- Quick Start Reference Guide & Documentation
Important: Diagnostic, programming, and service capabilities depend on the software application, vehicle or control module being serviced, and applicable software subscriptions or authorization. Software subscriptions are sold separately unless specifically stated otherwise.
