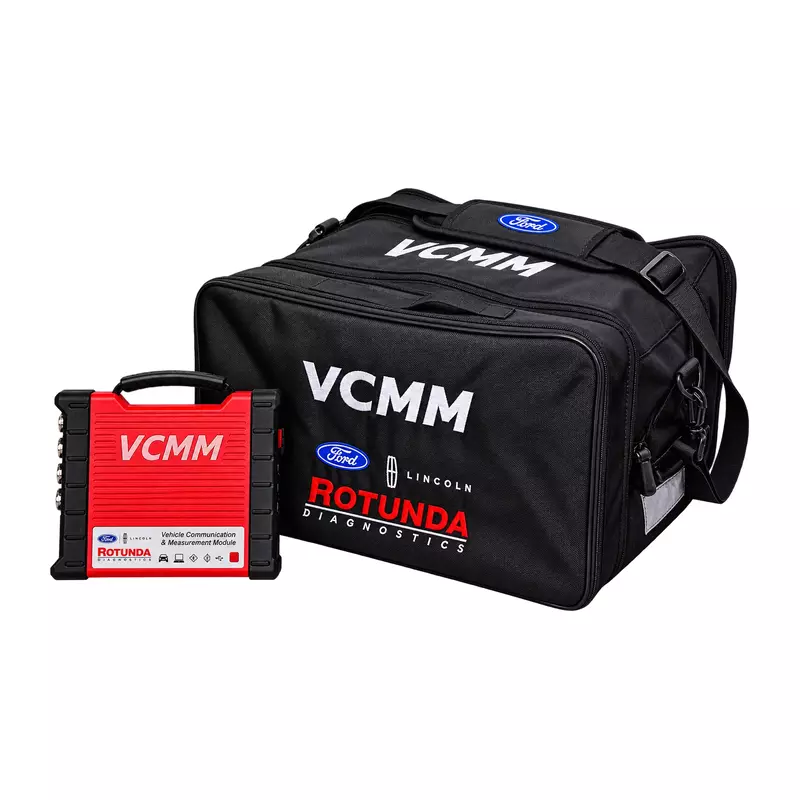

Ford Vehicle Communication & Measurement Module (VCMM) Advanced Kit
The Ford Vehicle Communication & Measurement Module (VCMM) is Ford’s advanced OEM diagnostic and measurement platform for supported Ford and Lincoln vehicles. Unlike a standard vehicle communication interface, the VCMM combines vehicle-network communication with professional electrical, vibration, and physical measurement capabilities in one integrated diagnostic tool.
Ford designed the VCMM to combine the functionality of the VCM II, Vehicle Measurement Module (VMM), and MTS 4000/4100 vibration analyzer. When used with supported Ford diagnostic software, it can perform dealership-level vehicle diagnostics while also providing oscilloscope, digital multimeter, current, pressure, vibration, signal-generation, and driveline-analysis functions.
The Advanced Kit adds the hardware required for supported driveline balance procedures, making it especially useful for technicians diagnosing vibration, driveline, electrical, ignition, charging-system, and other complex vehicle concerns.
Key Capabilities
- Ford OEM vehicle communication and diagnostics
- 4-channel oscilloscope
- 4-channel digital multimeter
- 5th-channel direct DLC monitoring
- Vibration analysis
- Driveline balance capability with Advanced Kit hardware
- Signal generator
- Customer Flight Recorder capability
- Current, pressure, and vacuum measurement with applicable accessories
- Supported module programming and programmable parameter functions
Technical Specifications
Manufacturer: Bosch
Manufacturer Part Number: 164-R9823
VCI Compatibility: OEM
Connection Type: USB / Bluetooth / Wi-Fi / Wireless
Supported Protocols: CAN, CAN-FD, HS-CAN, and MS-CAN, DoIP (Diagnostics over Internet Protocol), ISO 9141 and ISO 14230 (K-Line), SCP (Standard Corporate Protocol), SAE J1850 (PWM), SAE J2534 Pass-Thru standard
Compatible Software / OEMs: FDRS (Ford Diagnostic & Repair System) – Primary diagnostics/programming for 2018+ models, IDS (Integrated Diagnostic Software) – Diagnostics/programming for legacy vehicles, FJDS (Ford J2534 Diagnostic Software)
Warranty: 1 Year Manufacturer Warranty
What's Included
- VCMM Main Module (integrates VCM scanner
- 4/5-channel oscilloscope, digital multimeter, signal generator, and vibration analyzer)
- Communication Cables: Heavy-duty DLC OBD-II cable
- High-speed USB cable, and 2x USB Wi-Fi adapters
- Power Supplies: AC/DC power supply assembly and battery power lead cable
- Measurement & Test Leads: 4-channel color-coded test leads (Red
- Blue
- Yellow
- Green), probe tips, alligator clips, and universal probe tip adapters
- Current Probes: Low-current (50A) and high-current (500A) amp clamps
- Vibration Analysis Hardware: Accelerometer sensors and NVH timing light / inductive pickup loop
- Storage & Reference: Heavy-duty rugged carrying case and USB drive containing setup guides
- Advanced VCMM Kit variations may also include secondary ignition transducer clips/probes and driveline balancing components
Important: Diagnostic, programming, and service capabilities depend on the software application, vehicle or control module being serviced, and applicable software subscriptions or authorization. Software subscriptions are sold separately unless specifically stated otherwise.
