NEXIQ USB-Link 3 Wireless
The NEXIQ USB-Link 3 Wireless is a professional multi-brand vehicle communication interface designed to connect diagnostic software to commercial trucks, engines, transmissions, braking systems, and other supported electronic control systems.
Built for flexibility in the shop or in the field, the Wireless Edition can connect to a PC, tablet, or compatible mobile device using Bluetooth 5.0 or dual-band Wi-Fi. A latching USB connection is also included for a direct wired connection when wireless communication is not preferred or available.
The USB-Link 3 supports modern commercial-vehicle communication technologies including CAN FD, J1939 FD, and Diagnostics over Internet Protocol (DoIP), while maintaining support for widely used legacy protocols. NEXIQ also provides RP1210 and J2534 API support for compatibility with a broad range of OEM and aftermarket diagnostic applications.
Key Capabilities
- USB, Bluetooth 5.0, and dual-band Wi-Fi connectivity
- CAN FD and J1939 FD support
- Diagnostics over Internet Protocol (DoIP)
- RP1210 A/B/C/D application support
- SAE J2534 and partial J2534-1 support
- Broad OEM diagnostic software compatibility
Technical Specifications
Manufacturer: NEXIQ Technologies
Manufacturer Part Number: 121052
VCI Compatibility: Universal
Connection Type: USB / Bluetooth / Wi-Fi / Wireless
Supported Protocols: CAN FD (Flexible Data-rate), J1939 FD, ISO 15765 FD (250K, 500K, 1M b/s) with auto baud detection (3 simultaneous channels), Single Wire CAN (SWCAN), ISO 11898-3 Fault Tolerant CAN (FTCAN), Diagnostics Over Internet Protocol (DoIP), J1708, J1850 VPW (Class 2), J1850 PWM (SCP), ISO 9141 / KWP2000 (ISO 14230), K/L line, ALDL (9600 and 8192 baud), ATEC (160 baud), Windows® Vehicle Communication API RP1210 a/b/c, J2534 (2004 draft), J2534-1 (partial implementation)
Compatible Software / OEMs: Cummins, Detroit, PACCAR, Bendix, WABCO, Hino, Navistar, Allison
Warranty: 1 Year Manufacturer Warranty
What's Included

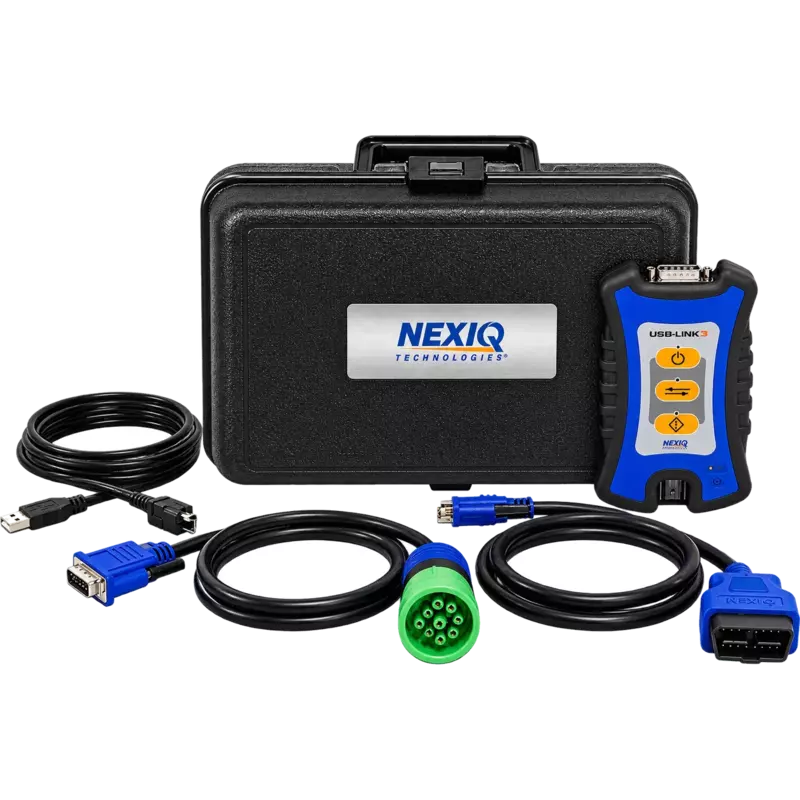

- NEXIQ USB-Link 3 Wireless Vehicle Interface Unit (with integrated Wi-Fi and Bluetooth 5.0)
- Latching USB Cable (Part #404032)
- 9-Pin Deutsch Vehicle Adapter Cable (1 Meter / Part #493128)
- 16-Pin OBD-II / J1962 Vehicle Adapter Cable (1 Meter / Part #491113)
- Quick Start Guide & Documentation
Important: Diagnostic, programming, and service capabilities depend on the software application, vehicle or control module being serviced, and applicable software subscriptions or authorization. Software subscriptions are sold separately unless specifically stated otherwise.
